Hind foot Instrument Set

Hind foot Instrument Set
Hind foot Instrument Set - Image 2
Hind foot Instrument Set - Image 3
Hind foot Instrument Set - Image 4

Product Overview

The Hindfoot Nail Instrument Set is designed for precise implantation of Hindfoot IM and TTC fusion nails. It ensures accurate locking, stable fixation, and reliable performance, made from durable medical-grade stainless steel.

  1. M1.N.122.01 Insertion Handle Hindfoot Nail
  2. M1.N.122.02 Side Aiming Arm Hindfoot L-R
  3. M1.N.122.03 Proxi Aiming Arm Hindfoot
  4. M1.N.102.06 Conical Bolt_8.0mm*1.0mm_67mm
  5. M1.N.103.02 Uni Hex Screwdriver_8.0mm
  6. M1.N.101.16 Protection Sleeve_10.0mm/8.2mm_135mm
  7. M1.N.101.13 Drill Sleeve_8.0mm/4.2mm_152mm
  8. M1.N.101.14 Drill Sleeve_8.0mm/3.4mm_152mm
  9. M1.N.101.15 Trocar_8.0mm_156mm
  10. M1.N.107.02 Drill Bit_Ø4.0mm
  11. M1.N.107.03 Drill Bit_Ø3.2mm
  12. M1.N.104.01 Slotted Hammering Device
  13. M1.N.109.02 Tommy Bar
  14. M1.N.104.09 Slotted Hammer
  15. M1.N.104.02 Hammer Guide Rod External
  16. M1.N.103.03 Hex Screwdriver_3.5mm
  17. M1.N.103.06 End Cap Screwdriver 3.5mm
  18. M1.N.105.08 Awl Cannulated_12.0mm
  19. M1.N.109.05 Depth Gauge Distal_135mm
  20. M1.N.108.05 Guide Pin_3.0mm X 400mm
  21. M1.N.108.07 Guide Pin_2.5mm X 400mm
  22. M1.N.109.15 Guide Wire Gripper
  23. M1.N.109.14 Tissue Protector
  24. M1.N.101.29 Protection
  25. Sleeve_16.5mm/13.5mm_105mm
  26. M1.N.101.41 Guide wire sleeve_13.0mm/3.2mm_118mm
  27. M1.N.106.13 Entry Reamer_12.0mm
  28. M1.N.109.01 Quick Coupling_R

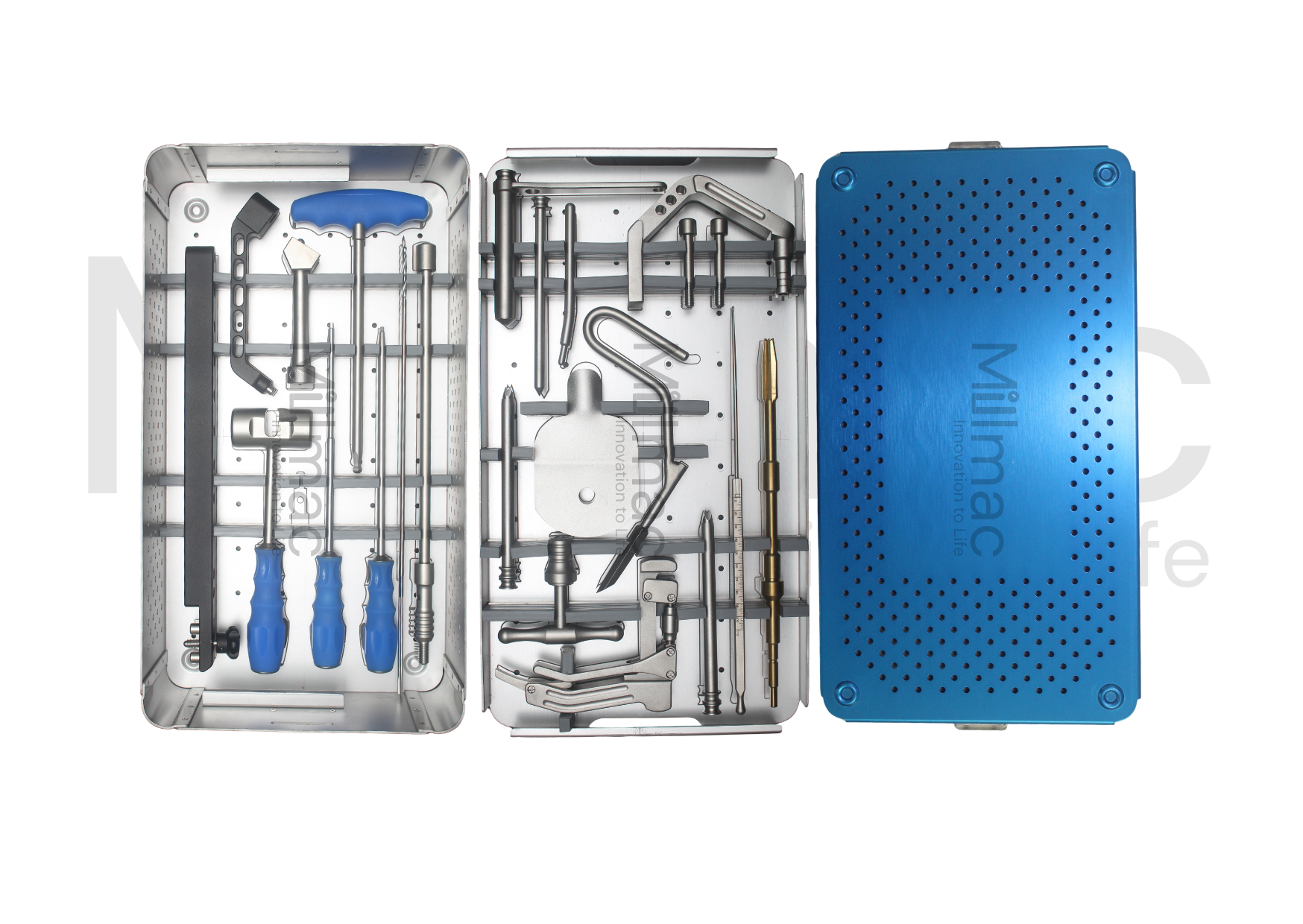

  29. M1.N.122.10 Instrument Box With Graphics



Advanced Instrumentation System for Tibiotalocalcaneal (TTC) & Hind foot Fusion Nailing

The Hind foot Nail Instrument Set is a comprehensive orthopedic surgical instrumentation system designed for precise implantation of Hind foot Intramedullary (IM) Nail systems, including Tibiotalocalcaneal (TTC) fusion nails. Engineered for accuracy, stability, and surgical efficiency, this instrument set enables controlled nail insertion, accurate multi-planar locking, and reliable fixation for complex hind foot and ankle fusion procedures.

Manufactured from high-quality medical-grade stainless steel, the Hind foot Nail Instrument Set offers excellent durability, corrosion resistance, and long-term performance under repeated sterilization cycles. It is ideal for orthopedic trauma surgeons, foot & ankle specialists, hospitals, and global distributors.

Key Features

  • Designed for Hind foot / TTC Intramedullary Nail systems
  • Accurate targeting device for multi-planar locking
  • Precision alignment system for calcaneal and tibia fixation
  • Ergonomic insertion handle for improved surgical control
  • Complete drill sleeve and protection sleeve assembly
  • High-precision depth gauge and measuring instruments
  • Durable, reusable stainless steel construction
  • Fully autoclavable
  • Supplied in organized sterilization tray

Components

The Hind foot Nail Instrument Set typically includes:

Customization available according to implant design specifications.

Clinical Applications

The Hind foot Nail Instrument Set is used in:

  • Tibiotalocalcaneal (TTC) fusion procedures
  • Severe ankle arthritis
  • Charcot arthropathy
  • Post-traumatic ankle deformities
  • Failed ankle arthrodesis
  • Complex hind foot fractures
  • Limb salvage procedures

The system supports stable fixation and compression across the ankle and subtler joints.

Technical Specifications

  • Material: Surgical-grade stainless steel
  • Surface Finish: Corrosion-resistant satin finish
  • Sterilization: Autoclavable
  • Reusability: Designed for repeated sterilization cycles
  • Compliance: ISO 13485 & MD-5
  • Application: Hind foot / TTC Intramedullary Nail Systems

Why Choose Us

As a trusted orthopedic instrument manufacturer and exporter, we supply precision-engineered hind foot nailing instruments that meet international surgical standards. Every instrument is manufactured under strict quality control to ensure dimensional accuracy, reliability, and long service life.

We provide:

  • OEM manufacturing & private labeling
  • Bulk distributor supply
  • Competitive pricing
  • Export-ready packaging
  • Worldwide shipping support
