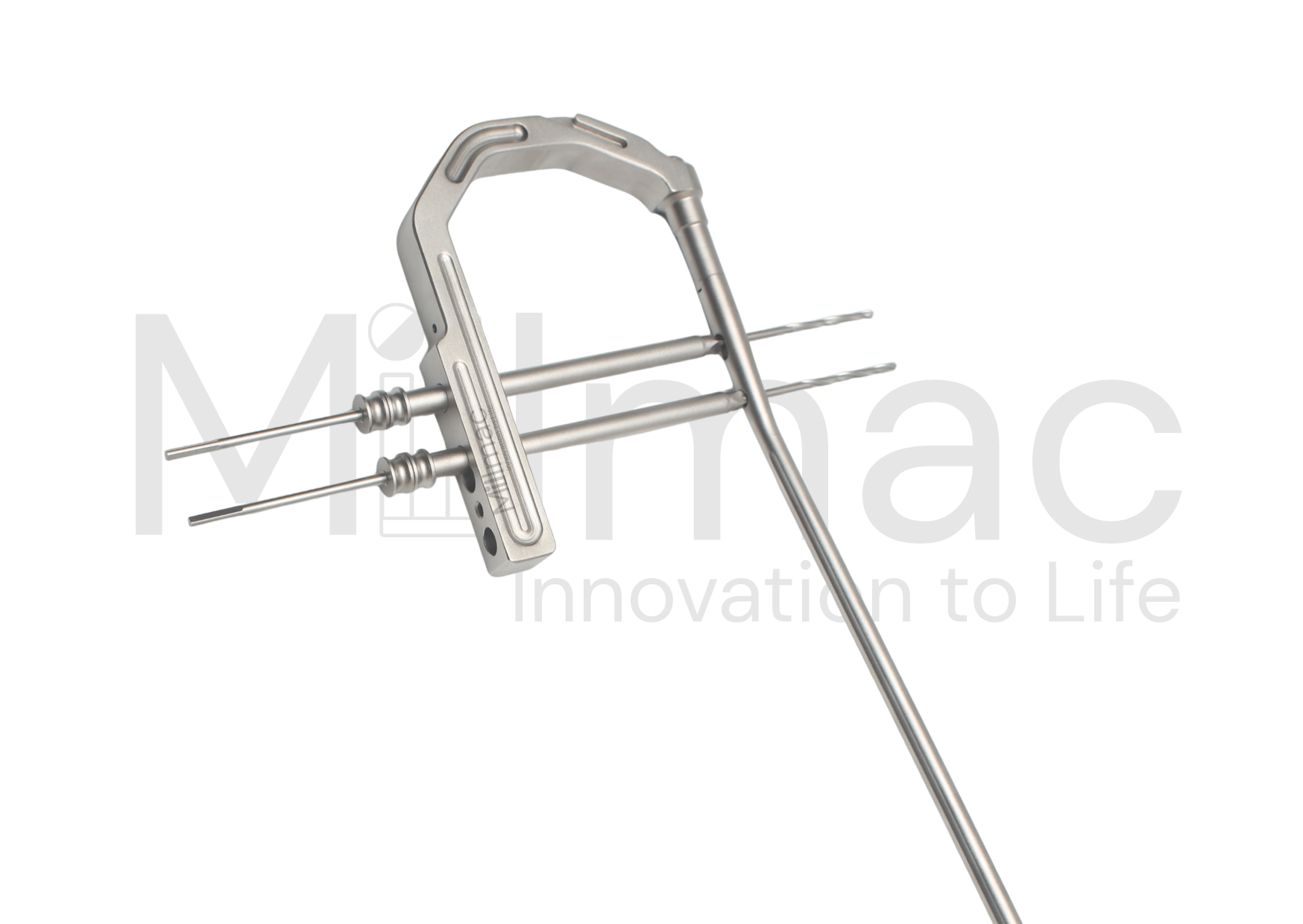

Tibia-Femur Instrument Set

Tibia-Femur Instrument Set
Tibia-Femur Instrument Set - Image 2

Product Overview

The Tibia-Femoral Nail Instrument Set is designed for precise implantation of tibia and femoral IM nails, ensuring controlled insertion, accurate targeting, and secure proximal and distal locking. Manufactured from medical-grade stainless steel, it offers durability, corrosion resistance, and reliable performance under repeated sterilization.

  1. M1.N.114.01 Insertion Handle For Femur and Tibia Nail
  2. M1.N.102.05 Conical Bolt_9.0mm*1.0mm_66mm
  3. M1.N.103.02 Uni Hex Screwdriver_8.0mm
  4. M1.N.105.02 Awl Cannulated_13.0mm
  5. M1.N.109.02 Tommy Bar
  6. M1.N.104.01 Slotted Hammering Device
  7. M1.N.104.02 Hammer Guide Rod External
  8. M1.N.104.03 Round Hammer_EX
  9. M1.N.101.12 Protection Sleeve_11.0mm/8.2mm_135mm
  10. M1.N.101.13 Drill Sleeve_8.0mm/4.2mm_152mm
  11. M1.N.101.14 Drill Sleeve_8.0mm/3.4mm_152mm
  12. M1.N.101.15 Trocar_8.0mm_156mm
  13. M1.N.107.02 Drill Bit_Ø4.0mm
  14. M1.N.107.03 Drill Bit_Ø3.2mm
  15. M1.N.109.05 Depth Gauge Distal_135mm
  16. M1.N.103.03 Hex Screwdriver_3.5mm
  17. M1.N.101.41 Guide wire sleeve_13.0mm/3.4mm_118mm
  18. M1.N.109.14 Tissue Protector
  19. M1.N.101.29 Protection Sleeve_16.5mm/13.5mm_105mm
  20. M1.N.109.01 Quick Coupling_R
  21. M1.N.106.09 Entry Reamer_13.0mm
  22. M1.N.105.06 Awl Curved Solid_13.0mm

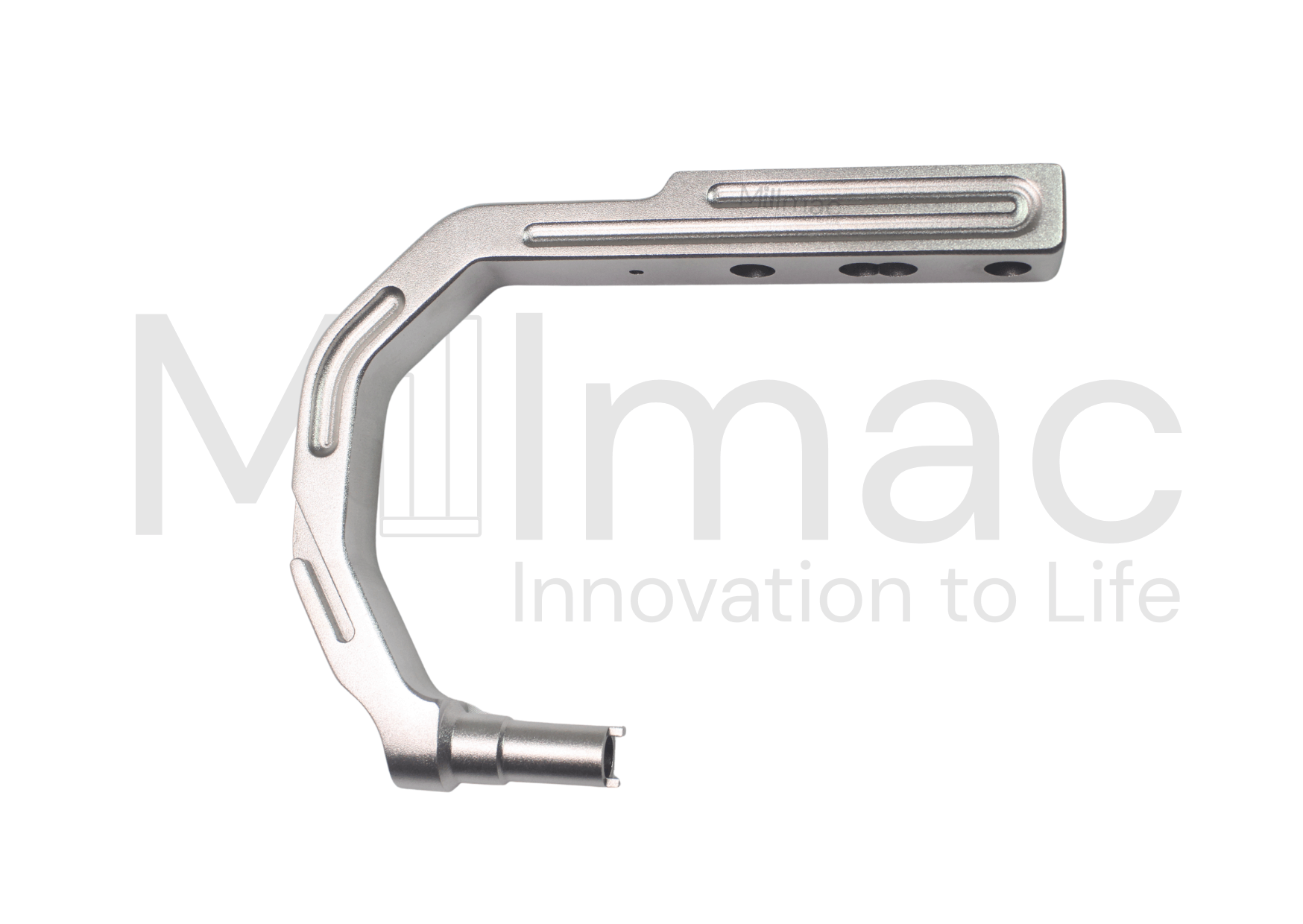

  23. M1.N.114.08 Tibia Distal Bar L & R Combine
  24. M1.N.114.09 Femur Distal Bar L & R Combine
  25. M1.N.114.10 Instrument Box With Graphics

Precision Instrumentation System for Tibia & Femoral Intramedullary Nailing

The Tibia-Femoral Nail Instrument Set is a comprehensive orthopedic surgical instrumentation system designed for accurate implantation of tibia and femoral intramedullary (IM) nail systems. Engineered for precision, durability, and surgical efficiency, this instrument set enables controlled nail insertion, accurate targeting, and secure proximal and distal locking for long bone fracture fixation.

Manufactured from medical-grade stainless steel, the Tibia-Femoral Nail Instrument Set ensures high strength, corrosion resistance, and long-term reliability under repeated sterilization cycles. It is ideal for trauma centers, orthopedic hospitals, and global distributors seeking dependable long bone nailing instrumentation.

Key Features

  • Compatible with Tibia and Femoral Intramedullary Nail Systems
  • Precision targeting device for accurate locking screw placement
  • Ergonomic insertion handles for improved surgical control
  • Complete range of drill sleeves, protection sleeves, and guide instruments
  • High-accuracy depth measurement tools
  • Durable stainless steel construction
  • Autoclavable and reusable

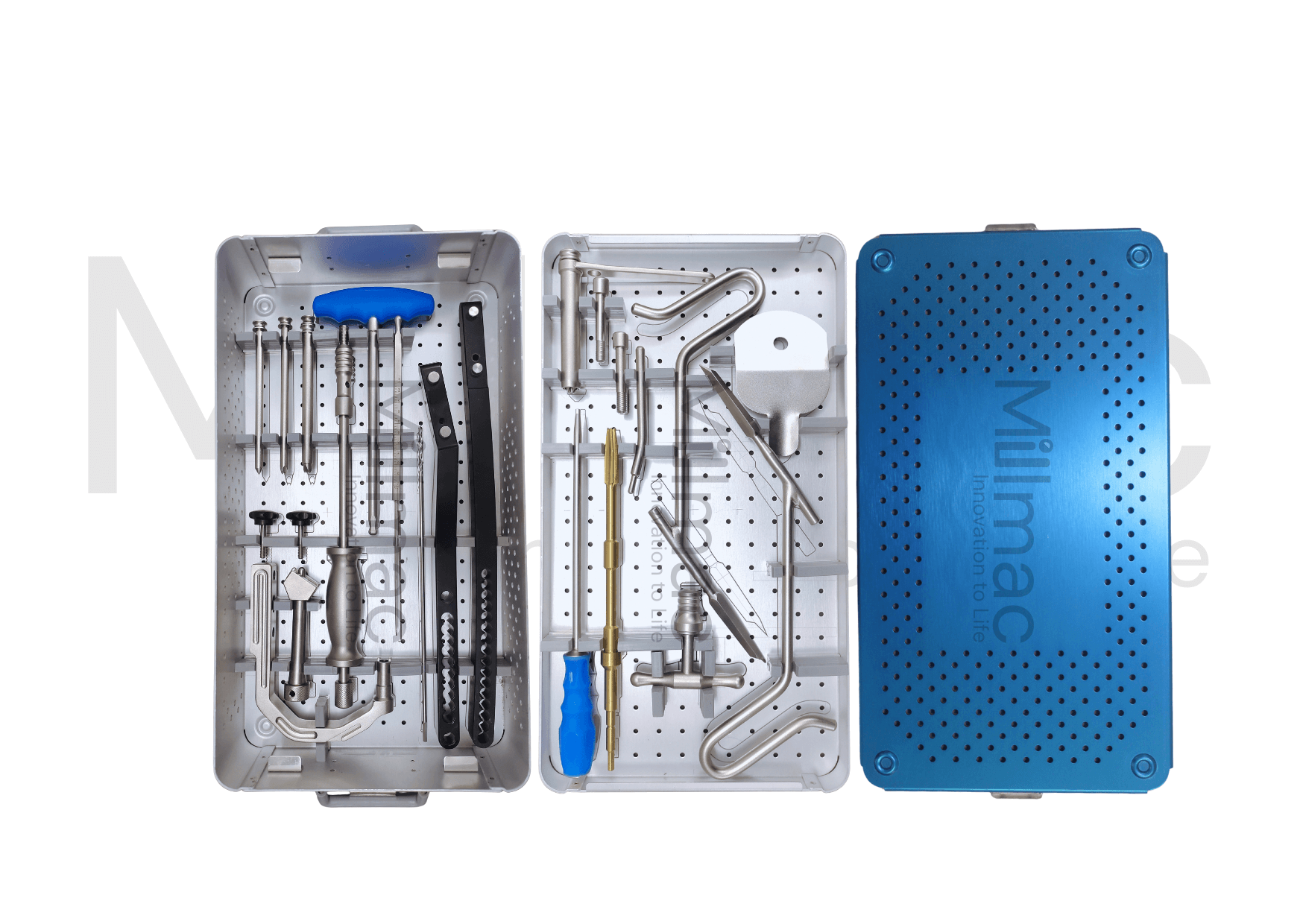

  • Supplied in organized sterilization tray

Components

The Tibia-Femoral Nail Instrument Set typically includes:

Customization available according to implant system specifications.

Clinical Applications

This instrumentation system is used for:

  • Tibia shaft fractures
  • Femoral shaft fractures
  • Proximal and distal tibia fractures
  • Proximal and distal femoral fractures
  • Complex and comminuted long bone fractures
  • Trauma and orthopedic surgical procedures

It supports accurate nail alignment and stable locking fixation to improve surgical outcomes.

Technical Specifications

  • Material: Surgical-grade stainless steel
  • Surface Finish: Corrosion-resistant satin finish
  • Sterilization: Autoclavable
  • Reusability: Designed for multiple sterilization cycles
  • Compliance: ISO 13485 & MD-5
  • Application: Tibia & Femoral IM Nail Systems

Why Choose Us

As a leading orthopedic instrument manufacturer and exporter, we provide precision-engineered intramedullary nailing instrumentation designed to meet international quality standards. Each instrument undergoes strict dimensional inspection and quality control to ensure consistent surgical performance.

We offer:

  • Bulk distributor supply
  • OEM manufacturing services
  • Global export packaging
  • Competitive pricing
  • Reliable production timelines
